WMKD / PBKD COMMERCIAL
CIRCULATING FANS

• Commercial duty circulating fans (Knock Down).
• Painted aluminum blades.
• Standard OSHA guard.
• Motors are thermally protected.
• Available in 24” and 30” stationary and oscillating models.
• Packaged in one box, complete with mounting accessories.
• Complete with 10’, 120V grounded plug.

CA INDUSTRIAL GRADE CIRCULATING FAN HEADS & ACCESSORIES

• Rugged, high performance model.
• Available in 24” & 30” sizes.
• 1/4 HP, 3 speed, totally enclosed ball bearing motor with thermal overload protection.
• Fan motor RPM - 1100/950/850.
• Available with oscillating motor for the pedestal and wall models.
• Heavy gauge aluminum, well balanced fan blades.
• Air stream adjustable in all directions.
• Complete with 10’, 120V grounded cord set.
• Attractive powder coated front and rear guards, meet OSHA standards.
• Fan head and accessory sold separately.

HAF HORIZONTAL AIRFLOW FANS

• 18” horizontal air flow fan
• Available in white & chrome
• Totally enclosed variable speed motor
• Zinc dipped OSHA guard
• Suitable for wet locations
• 115V, 8 foot grounded cord & plug
• White powder coated guard with wide spacing also available

Up to 4000 CFM

WET Location

‍

HVF HIGH VELOCITY FLOOR/TABLE FANS

• Painted silver finish.
• 3 speed dial control.
• Sturdy aluminum blades.
• 12’, 18” and 20” sizes available.
• Complete with 6’ 120V grounded cord set.
• Convenient carrying handle/cord wrap.
• Ergonomic tilt adjustment knobs.
• Complete with wall mount bracket.
• OSHA guard.

1600 - 4000 CFM

DRY Location

HVR ROUND PORTABLE FANS

• Heavy 18 gauge, powder coated steel housing.
• Factory balanced blade.
• Permanently lubricated, totally enclosed motors.
• 2 speed dial switch on 24” & 36” models.
• Fan drum pivots up for directional control with strong locking mechanism.
• Complete with 10’, 120V grounded cord.
• Powder coated front and rear guards meet OSHA standards.
• Heavy duty wheel kit makes this fan easy to move.
• 5” (HVR24) and 8” (HVR36) rubber wheels with steel hubs.
• Complete with conversion kit for ceiling mount.

7000 - 12000 CFM

‍

CA AG BASKET TYPE CIRCULATING FANS

• Variable speed, totally enclosed, sealed ball bearing, thermally protected, high efficiency, dual voltage, 115/230V.
• High volume, corrosion resistant blades.
• Polyester powder coated, steel wire guard to OSHA specifications
• Galvanized Steel adjustable three way mount.  Mount to wall, ceiling or overhead joist. Fan can pivot down and swivel left and right for pin-point control of air stream.
• Fan head comes pre-assembled to guarantee fan blade is in proper location on motor shaft for maximum performance and safety within the guard.
• Can operate with Canarm’s manual or automatic thermostatic controls (sold separately)
• Suitable for buildings with low ceilings

5300 - 8300 CFM

‍

AG SERIES AGRICULTURAL FAN

• Built-in controller for smooth speed regulation.
• Fan’s casing is made of high quality UV-resistant plastic
  (flame rating - 5VA)
• Fitted with backward curved centrifugal impeller driven by powerful sealed external rotor motor with lifelong bearings and thermal protection.

‍

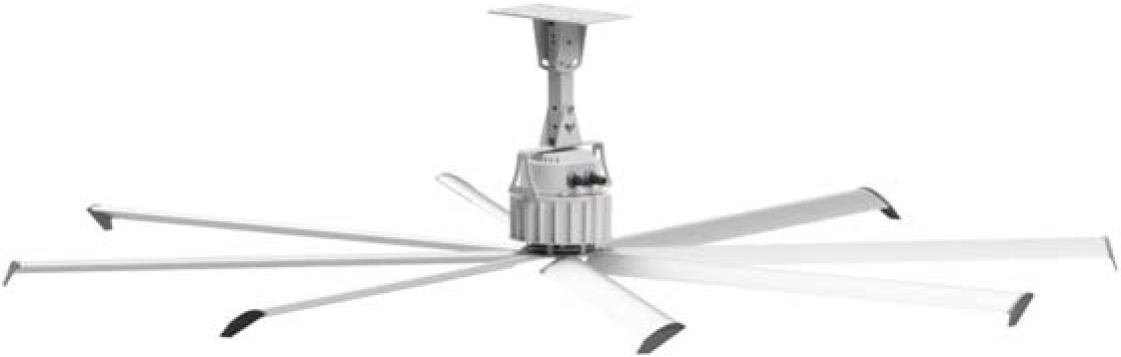

HVLS CIRCULATING FANS

• Operates quietly to keep air moving throughout the facility.
• Higher average wind speeds than traditional cooling fans.
• Automatic controls allow the fan to operate when necessary reducing energy costs.
• Fans are ceiling mounted out of the way of moving equipment.
• Low power consumption for CFM delivery ratio.
• No drive belts or belt tighteners to maintain.
• Electrical controls of the HVLS fans, can be located in one central lockable location.
• Less wiring & labour required to install HVLS fans over traditional cooling fans.
• Highest CFM per W on the market (523 CFM/W on the 24’ Tri-Lite and 392 CFM/W on the 16’ fan).

‍
